MOSQUITO MK1

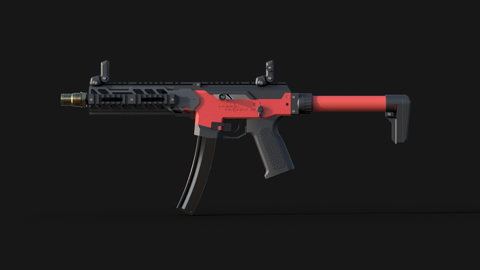

The core design philosophy of the MOSQUITO from the very beginning was to be as compact and lightweight as possible. However, I realised that the more I tried to shrink the design, the harder it became to maintain the aesthetic and features I wanted without interfering with internal functons. Eventually, I made the decision take the MOSQUITO in a new direction: transforming it into a tactical platform rich with features while still maintaining practical performance. This meant going in the opposite direction and sizing up the design, which provided far more room for design freedom, leading to the creation of the handguard which was the most significant addition to the MK1 and elevated the overall design far beyond my initial expectations, creating a strong foundation for future expansion.

Features I once considered useless, such as the mock bolt, were also added to greatly enhance visual depth and mechanical realism. While this resulted in the MK1 being slightly taller than earlier versions, the significant uptick in model quality, and community perception, far outweighed my perfectionistic desire to keep it as compact as possible.

Great gun design relies not only on having a strong, memorable outline, but also on thoughtfully breaking up the internal forms so they remain visually appealing once colour is applied.

For example, in the bottom model on the right image, the top cover and stock adapter are merged into a single form. While there is nothing inherently wrong, it softens the presence of the coloured receiver and makes the overall outline less defined with the staggering steps. By subtly reshaping these elements, the result is the above model, where the top cover stands on its own as a distinct form, creating a much more striking outline and visual separation of colour.

The MOSQUITO project taught me that the simplest, most subtle changes are often the ones that demand the most time, thought, and design complexity. It is always easy to see why a decision worked once everything is finished. But, during the process, when the canvas is blank and every direction is possible, making that choice is far from simple, especially for a design that no one else has done before.

Of course, not everything went according to plan. Several oversights emerged during development, including insufficient clearance for internal wiring introduced by the new bolt design, front battery wiring that conflicted with the locking nut, and power inconsistencies caused by alignment issues. Fortunately, modern desktop 3D printers such as the Prusa MK3S and Bambu P1S enabled rapid iteration, allowing these problems to be rapidly fixed.

A quick-release suppressor system was planned from the beginning. While it initially worked, it was abandoned in the end as the locking mechanism lacked the rigidity required to properly stabilise the inner barrel, leading to shot-to-shot inconsistencies, and repeated use caused progressive wear that reduced long-term reliability.

As the MK1 model approached release, it became paramount to implement a dedicated brand logo to firmly establish the HYBRID ARMORY identity, as the MOSQUITO had been developed for years without a name behind it. The logo was placed in the centre of the receiver for a bold presence. It was scaled to be large enough such that fine details are cleanly reproduced with FDM 3D printing, and small enough to avoid dominating the design.
